Powerful Pneumatic Piston Vibrators designed to improve material flow in hoppers, bins, silos, and chutes. Reliable, low-maintenance, and suitable for powders, grains, aggregates, and bulk solids.
ACE Flow Konzepts Pvt Ltd is a leading supplier of Pneumatic Piston Vibrators in India, engineered to solve difficult material flow problems in bulk handling systems. These vibrators use compressed air to create strong, controlled vibrations that help materials such as powders, grains, and aggregates move freely through hoppers, bins, silos, and chutes—preventing clogging, sticking, and production delays.
Designed with a simple yet robust structure, pneumatic piston vibrators require minimal maintenance while delivering consistent performance in harsh, high-temperature, and dusty environments. Adjustable vibration intensity allows fine control based on the application, making them suitable for small hoppers as well as large storage silos.
Pneumatic Piston Vibrators are widely used in industries including manufacturing, chemicals, mining, agriculture, construction, and food processing. They reduce downtime, improve efficiency, prevent manual intervention and enhance workplace safety by eliminating the need for hammering or manual cleaning.

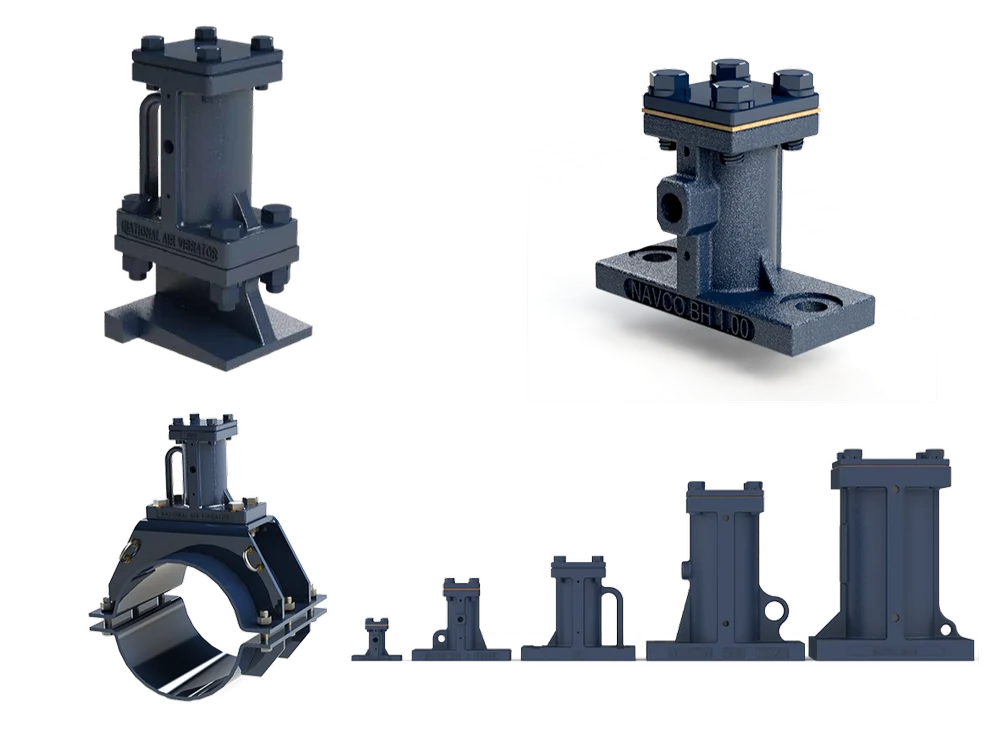

NAVCO Pneumatic Piston Vibrators
NAVCO is a global leader in pneumatic piston vibrator technology, offering over 70 models engineered for bulk material handling. NAVCO vibrators improve flow efficiency, reduce wall friction, and provide long-lasting performance.
BH – Bin Hopper Vibrators
Available in 10 sizes for light to heavy-duty applications. Options include:
-
Tapped exhaust ports
-
Internal springs (for horizontal mounting)
-
Specialty coatings for long life
Large BH units suit coal, ore, steel and heavy-duty operations; smaller units are ideal for chemical, food, grain and pharmaceutical materials.
Types of Vibration
Impacting Type (IGO):
High-amplitude repetitive impacts for cohesive, stubborn materials. Ideal for breaking bridges and cleaning empty bins.
Silent Type (SGO):
Sinusoidal vibration with air cushioning. Best for free-flowing materials requiring gentle vibration.
Timed Impact Type (IGT):
One powerful impulse per cycle. Perfect for controlled hopper evacuation with low noise and low air usage.
Accessories
-
Wear-resistant specialty coatings
-
Single/Dual tapped exhaust
-
Start springs
-
Timers & PLC-based controls for automation
Mounting Options
-
T-Slot Mount (flat hopper walls)
-
Channel Mount (curved hoppers)
-
U-Mount (chutes, light duty)
-
Slip Mount (portable use)
These pneumatic piston vibrators ensure smooth, uniform material flow, reduce operational interruptions and extend equipment life.
| Model No | Frequency | Air Consumption | Sound Presuure Level | Sizing Criteria | |||||
| Impacting (VPM) | Silent (VPM) | Impacting (SCFM) | Silent (SCFM) | Impacting (dBA) | Silent dBA) | Hopper Capacity(cu. ft) | Wall thickness range (inches) | Weight (lb) | |
| BH-1 | 7250 | 3600 | 3.3 | 3.0 | 86 | 73 | 3 | 1/16”-1/8” | 3 |
| BH-1.25 | 5250 | 3150 | 4.2 | 4.0 | 87 | 67 | 3-7 | 1/16”-1/8” | 3 |
| BH-1.62 | 5100 | 2200 | 7.5 | 7.2 | 102 | 74 | 7-20 | 3/16”-1/4” | ” 18 |
| BH-2 | 4750 | 2100 | 8.3 | 8.3 | 106 | 73 | 20-50 | 3/16”-1/4” | 20 |
| BH-3 | 3400 | 1800 | 11.6 | 11.3 | 96 | 76 | 10-20 ton | 1/4”-3/8” | 50 |
| BH-4 | 2750 | 1400 | 18.2 | 18.2 | 110 | 83 | 50-100 ton | 3/8” – 1/2” | 105 |
