Product Details

Industrial-grade NAVCO Pneumatic Piston Vibrators for hoppers, bins and silos. Engineered to eliminate material bridging, improve bulk solid flow and reduce downtime in mining, cement, chemical and food industries.

NAVCO Pneumatic Piston Vibrators in India - Industrial Bin and Hopper Flow Solutions

ACE Flow Konzepts Pvt Ltd is an authorized supplier of NAVCO Pneumatic Piston Vibrators in India, engineered to eliminate material buildup, prevent bridging, and ensure consistent flow of bulk solids in hoppers, bins, silos, chutes, and storage vessels.

Powered entirely by compressed air, NAVCO piston vibrators generate powerful linear vibration or controlled impact forces to dislodge stubborn materials such as powders, granules, cement, coal, grains, chemicals, sand, aggregates, and other bulk solids.

By preventing clogging, arching, and rat-holing, these vibrators reduce production downtime, improve discharge efficiency, and eliminate unsafe manual hammering or mechanical intervention.

Designed for Harsh Industrial Environments

NAVCO pneumatic piston vibrators are built for heavy-duty performance in high-temperature, dusty, corrosive, and abrasive environments. With rugged construction and minimal moving components, they ensure long service life and low maintenance requirements.

Operates on compressed air
Adjustable vibration intensity
Simple installation
Low maintenance operation
Reliable in continuous industrial use

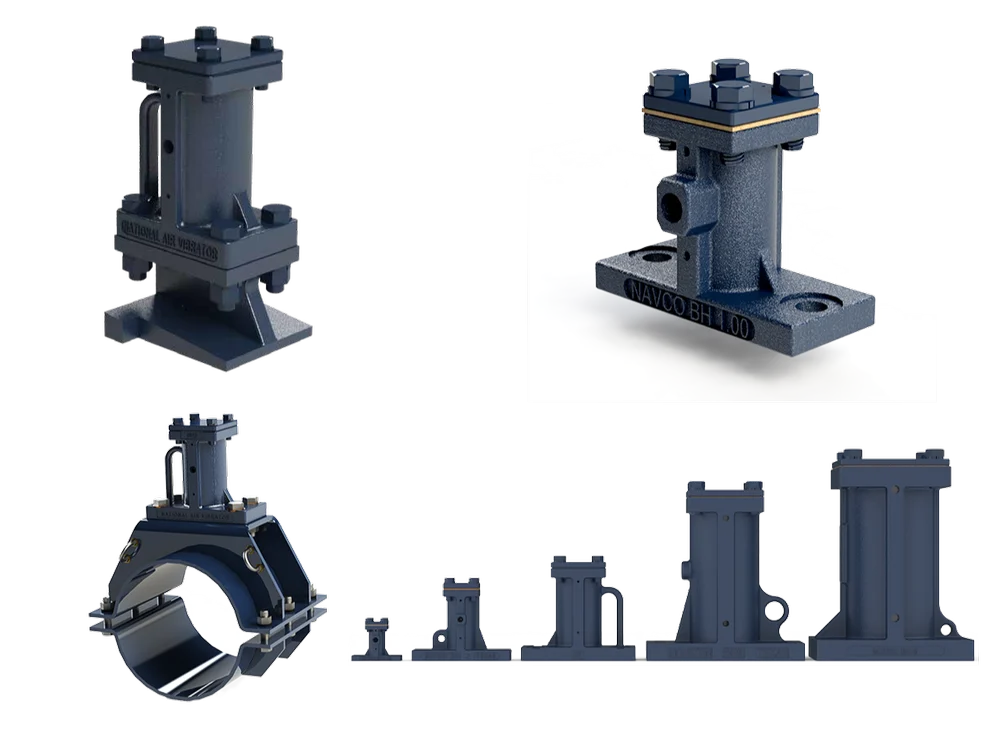

NAVCO Vibrator Models

NAVCO manufactures multiple piston vibrator types to match specific material flow characteristics:

Impacting Type (IGO)

Designed for tough, cohesive materials that resist flow. Produces high-amplitude repetitive impacts to break bridges and empty stubborn bins effectively.

Silent Type (SGO)

Generates smooth sinusoidal vibration using air cushioning at both ends. Ideal for free-flowing or delicate materials requiring controlled, low-noise vibration.

Timed Impact Type (IGT)

Delivers a single powerful impulse per cycle when triggered. Recommended for controlled evacuation of hoppers where reduced air consumption and lower noise are required.

BH Series - Bin Hopper Vibrators

NAVCO BH Bin Hopper Vibrators are available in 10 sizes, covering light-duty to heavy industrial applications.

Tapped exhaust port options
Internal start springs for horizontal mounting
Specialty coatings for corrosive or abrasive environments

Large BH units are ideal for coal, mining, ore handling, and steel industries, while smaller models are suitable for chemical processing, food manufacturing, grain handling, and pharmaceutical applications.

Mounting Options

T-Slot Mount for flat hoppers
Channel Mount for curved hopper walls
U-Mount for chutes and pipes (light duty)
Slip Mount for portable applications

Accessories and Control Options

Special interior protective coatings
Single or dual tapped exhaust ports
Start springs
Timers and air control systems
PLC-integrated automation and feedback control

Benefits to Industrial Operations

Eliminates hopper bridging, rat-holing and material blockages
Ensures consistent and controlled bulk material discharge
Reduces unplanned production stoppages and downtime
Improves process efficiency in continuous handling systems
Minimizes labor dependency and unsafe manual intervention
Enhances equipment reliability and operational stability
Prevents structural stress caused by manual hammering
Optimizes flow performance in silos, bins and transfer chutes
Supports higher throughput and better production output

Why Choose ACE Flow Konzepts Pvt Ltd

With technical expertise in pneumatic flow solutions and bulk material handling systems, ACE Flow Konzepts Pvt Ltd delivers application-specific vibrator selection, mounting guidance, and system integration support across industries in India.

For reliable NAVCO Pneumatic Piston Vibrators in India, partner with ACE Flow Konzepts Pvt Ltd - your trusted industrial vibration and material flow solution provider.

Download Brochure

Model No	Frequency		Air Consumption		Sound Presuure Level		Sizing Criteria
Model No	Impacting (VPM)	Silent (VPM)	Impacting (SCFM)	Silent (SCFM)	Impacting (dBA)	Silent dBA)	Hopper Capacity(cu. ft)	Wall thickness range (inches)	Weight (lb)
BH-1	7250	3600	3.3	3.0	86	73	3	1/16”-1/8”	3
BH-1.25	5250	3150	4.2	4.0	87	67	3-7	1/16”-1/8”	3
BH-1.62	5100	2200	7.5	7.2	102	74	7-20	3/16”-1/4”	” 18
BH-2	4750	2100	8.3	8.3	106	73	20-50	3/16”-1/4”	20
BH-3	3400	1800	11.6	11.3	96	76	10-20 ton	1/4”-3/8”	50
BH-4	2750	1400	18.2	18.2	110	83	50-100 ton	3/8” – 1/2”	105

Faq

NAVCO Pneumatic Piston Vibrators use compressed air to generate powerful, controlled vibrations that solve bulk material flow problems. They are ideal for equipment such as hoppers, bins, silos, and chutes where powders, grains, or aggregates often stick and cause blockages.

These vibrators ensure consistent material flow, reduced downtime, and higher production efficiency. They require minimal maintenance, perform reliably in harsh conditions, and improve workplace safety by eliminating manual intervention such as hammering or cleaning.

NAVCO vibrators are widely used in mining, steel, chemical, food, grain, cement, and pharmaceutical industries. They are suitable for handling bulk materials such as coal, ore, powders, grains, and other free-flowing or cohesive materials.

NAVCO offers multiple configurations: Impacting Vibrators (IGO): For cohesive or poor-flowing materials. Silent Vibrators (SGO): For free-flowing materials with low noise requirements. Timed Impact Vibrators (IGT): For controlled, high-amplitude impulses with low air consumption.

As a reliable NAVCO Pneumatic Piston Vibrator supplier in Maharashtra and India, ACE Flow Konzepts Pvt Ltd provides high-quality vibrators with customizable options, durable designs, and expert technical support for smooth integration into bulk material handling systems.
