Airmasters Vortex Tube Manufacturer in India - Industrial Compressed Air Cooling Solution
The Airmasters Vortex Tube is a precision-engineered industrial compressed air cooling device designed for high-performance temperature control in demanding manufacturing environments. Operating entirely on compressed air, the system requires no electricity, no refrigerants, and no moving parts, ensuring maintenance-free performance and long operational life.
Using advanced vortex separation technology, the device converts standard compressed air into two separate streams - one hot and one cold - through high-velocity rotational airflow. Cold air temperatures can reach up to 100 F below inlet air temperature, making the vortex tube ideal for spot cooling, panel cooling, CNC machining operations, electronics protection, and process stabilization applications.
Airmasters Vortex Tube in India - Trusted Industrial Cooling Partner
ACE Flow Konzepts Pvt Ltd is a leading Airmasters Vortex Tube manufacturer and supplier in India, delivering reliable compressed air cooling solutions across automotive, pharmaceutical, packaging, electronics, plastics, and heavy engineering industries.
Our vortex tubes are widely deployed in control panel cooling systems, machine tool cooling, ultrasonic welding setups, laser housings, and precision manufacturing environments where consistent thermal management is critical for operational efficiency.
With durable stainless steel construction and interchangeable brass generators, the Airmasters Vortex Tube offers optimized airflow control, adjustable cold fraction settings, and stable cooling output even in harsh industrial conditions.
How the Vortex Tube Works
Originally developed by Georges Ranque in 1930, the vortex tube uses compressed air expansion and high-speed rotational dynamics to separate air into hot and cold streams without mechanical components.
- Compressed air enters through a precision brass generator.
- The air spins at high velocity inside the chamber.
- Energy separation creates an outer hot stream and inner cold stream.

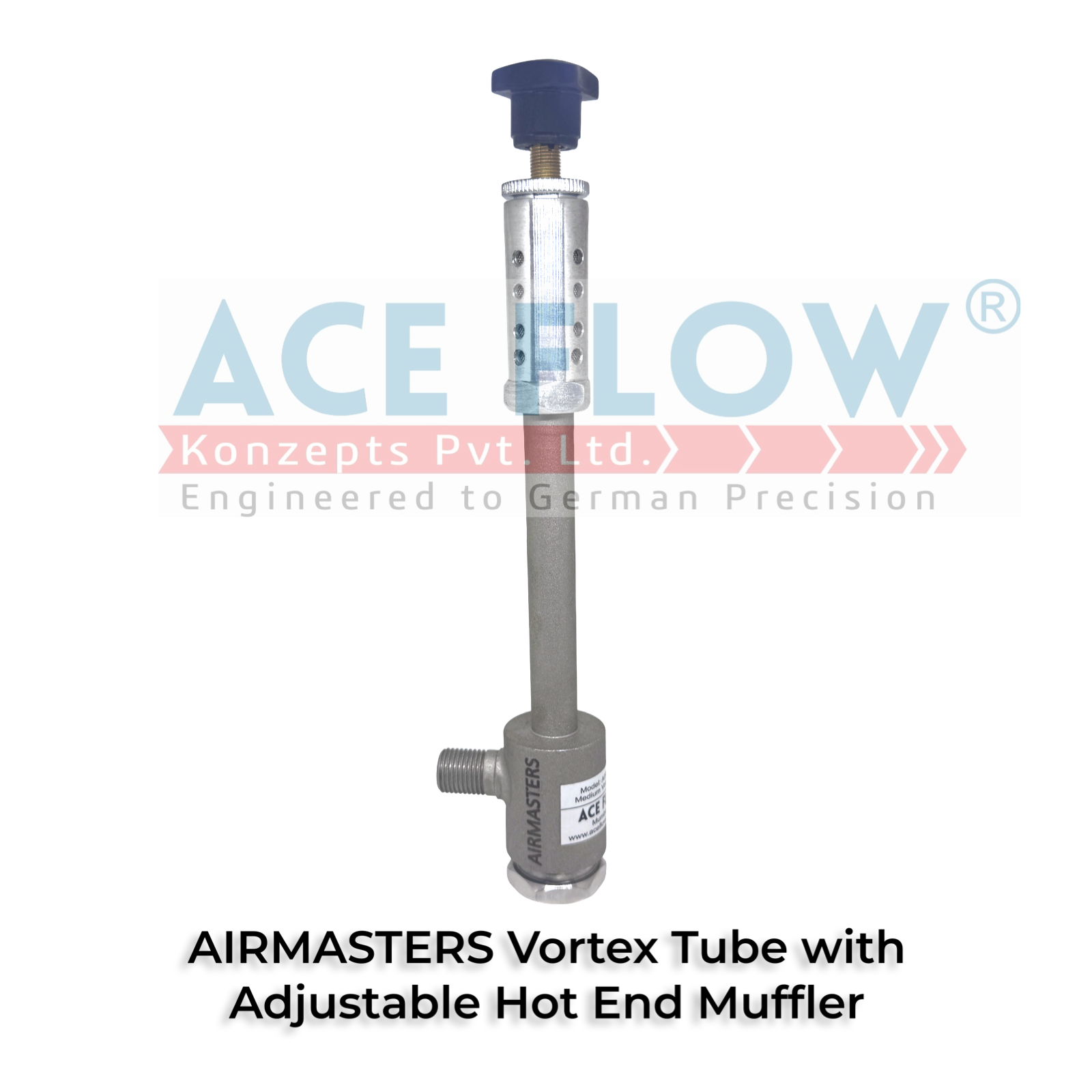

- An adjustable hot-end valve controls airflow and temperature output.
This simple yet powerful mechanism enables precise temperature control without wear, friction, or electrical dependency.
Technical Specifications and Capacity Range
Airmasters Vortex Tubes are available in multiple airflow capacities to suit various industrial cooling requirements:
- Small Capacity: 2 to 8 SCFM
- Medium Capacity: 10 to 40 SCFM
- Large Capacity: 50 to 150 SCFM
Temperature reduction capability can reach up to 100 F below inlet compressed air temperature depending on pressure, flow rate, and cold fraction setting.
Key Advantages
- No moving parts and zero mechanical wear
- No electricity required
- Maintenance free and long service life
- Compact and lightweight design
- Durable metal construction
- Interchangeable airflow generators
- Adjustable temperature control
- Safe for hazardous and explosive zones
- Low installation cost
- Reliable performance in continuous operation
Industrial Applications
- Electrical control panel cooling
- CNC tool cooling and machining operations
- Laser cutting system cooling
- Electronic component temperature control
- Ultrasonic welding horn cooling
- Plastic molding and forming processes
- Heat shrink tube cooling
- Hot melt adhesive setting
- Preventing condensation inside electrical enclosures
- PLC panels, MCC panels, relay cabinets
- Noise-sensitive manufacturing environments
Products Developed Using Vortex Tube Technology
- Panel Cooler Systems
- Tool Cooling Units
- Spot Cooling Devices
Accessories and Support Equipment
- Compressed Air Filter Units
- Magnetic Mounting Base
- Brass Generator Kits
- Hot End Silencer
- Cold End Silencer
- Flexible Modular Hose
Why Choose ACE Flow Konzepts Pvt Ltd
We provide engineered industrial compressed air cooling solutions backed by technical expertise, airflow optimization capability, and application-specific guidance. Our focus is delivering performance-driven temperature control systems that reduce downtime, improve equipment life, and enhance manufacturing productivity.
For high-performance vortex tube solutions in India, partner with ACE Flow Konzepts Pvt Ltd - your trusted industrial air cooling specialist.
Technical Specifications - Airmasters Vortex Tube
The following performance table shows airflow, cooling capacity, and power equivalent for different Airmasters Vortex Tube models. This data helps in selecting the correct cooling capacity based on heat load and compressed air availability.
| Model No. | Air Consumption (SCFM) | Air Consumption (SLPM) | Cooling Capacity (BTU/Hr) | Cooling Capacity (Watts) | Size Category |
|---|---|---|---|---|---|
| AIR-M2H | 2 | 57 | 145 | 42 | Small |
| AIR-M4H | 4 | 113 | 290 | 85 | Small |
| AIR-M8H | 8 | 227 | 580 | 170 | Small |
| AIR-M10H | 10 | 283 | 730 | 214 | Small |
| AIR-M15H | 15 | 425 | 1100 | 322 | Medium |
| AIR-M25H | 25 | 708 | 1800 | 527 | Medium |
| AIR-M30H | 30 | 850 | 2100 | 615 | Medium |
| AIR-M40H | 40 | 1133 | 2900 | 849 | Medium |
| AIR-M50H | 50 | 1370 | 3500 | 1025 | Large |
| AIR-M75H | 75 | 2018 | 5200 | 1523 | Large |
| AIR-M100H | 100 | 2700 | 6900 | 2022 | Large |
| AIR-M150H | 150 | 4150 | 10300 | 3018 | Large |
Cooling capacity increases proportionally with compressed air consumption. Proper model selection should be based on total heat load, enclosure size, and available air pressure. Contact our technical team for correct sizing recommendations.
